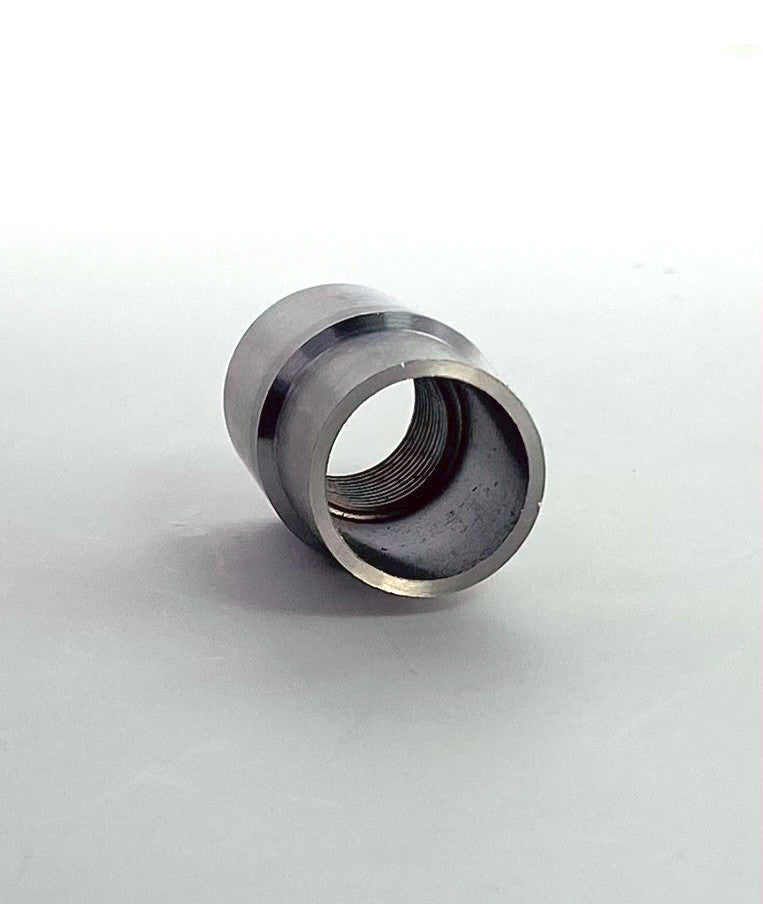

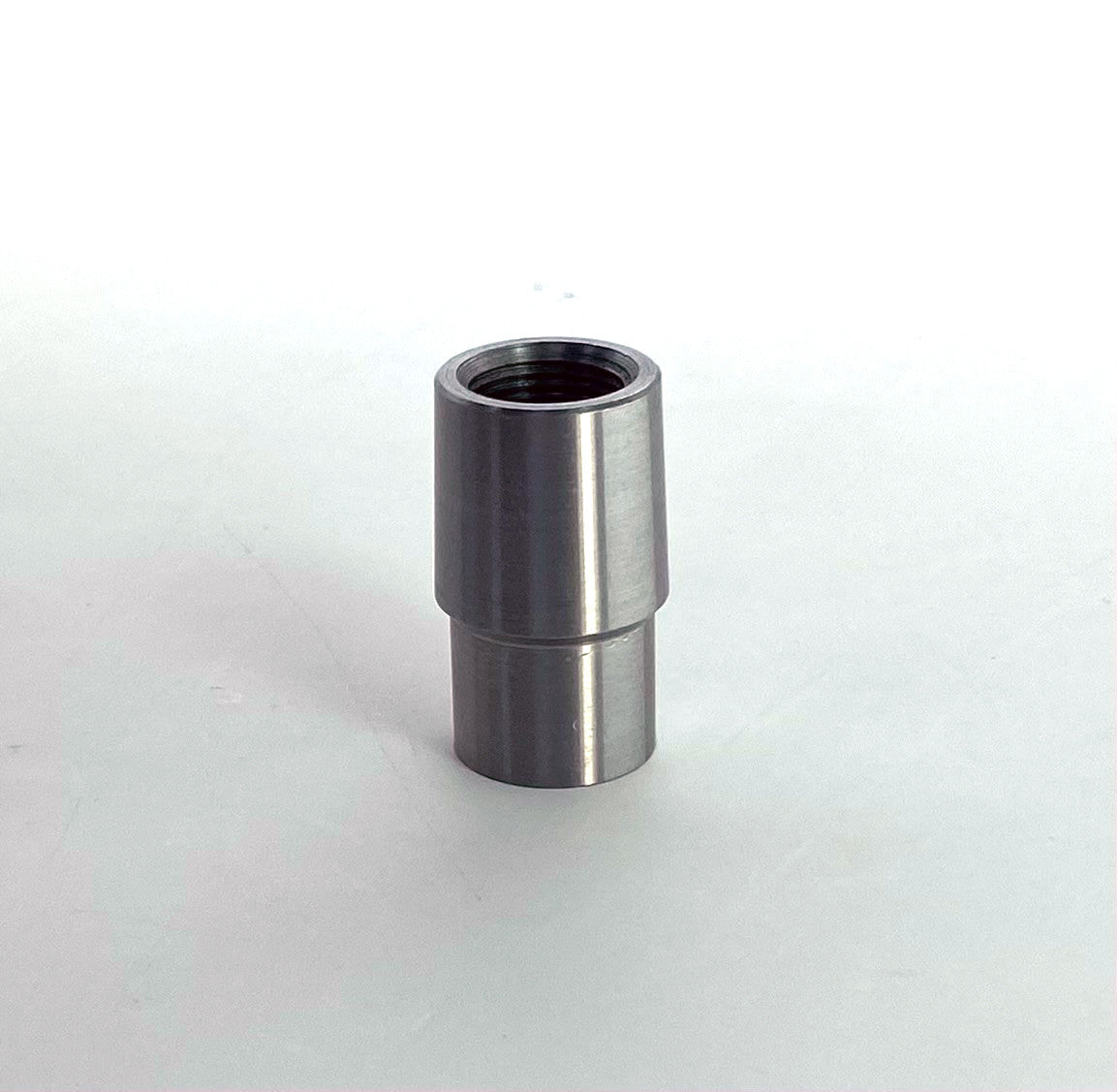

UPR Tube End 3/4-16 LH (1.125x.083) Steel

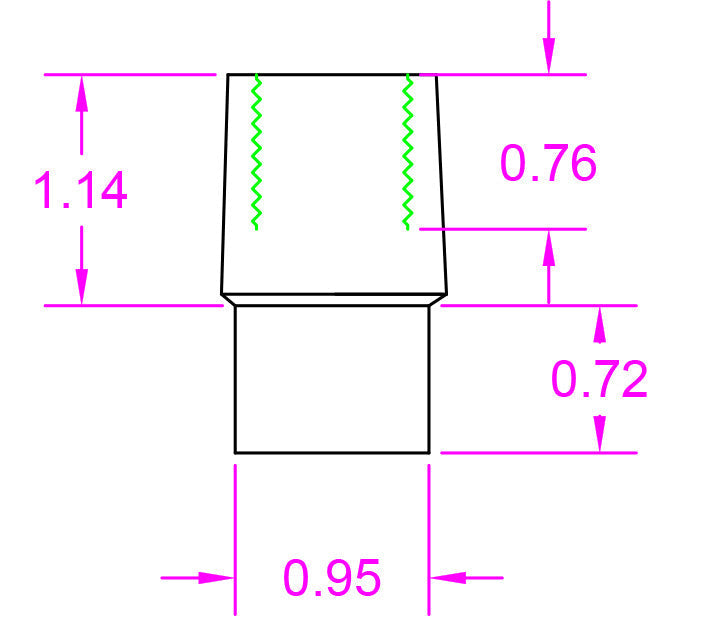

UPR CNC Machined Steel Tube Ends are the same ones used in our Pro Series and Extreme Series suspension components. Tube end is machined to work with 1-1/8" OD x .083" wall tubing and accepts a 3/4-16 Right Hand Heim Joints. Tapered edge where tubing butts up to fitting creating a groove allowing for a solid welding area. .72" long shoulder for a positive fit into the tubing and allows the tubing to be drilled for rosette welds. Will work with other size tubing that has an inside diameter (ID) of 1.00".

» 3/4-16 Right Hand Female Thread

» Fits 1-1/8" (1.125")OD x .083 Wall Tubing

» Will work with other size tubing with an ID of 1.00"

» CNC Machined (Not Cast) 1018 Mild Steel
» Tapered Edge creating a groove for a strong weld

Universal fitting can be used for multiple applications and or projects.
