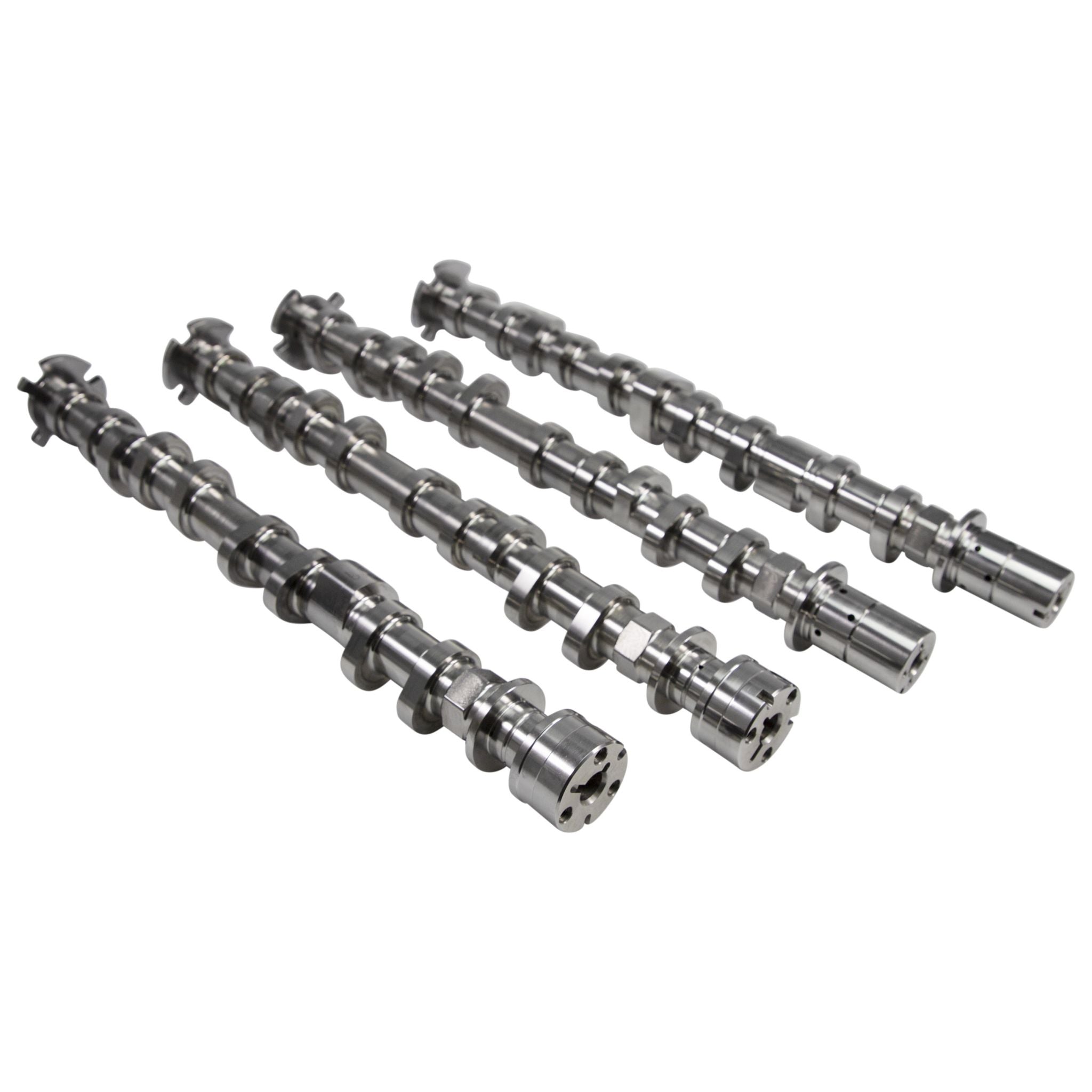

COMP Cams Camshaft Set 2018+ Ford Coyote 5.0L STG2 NST Thumper - 433710

$0.00 USD
By COMP Cams - Quote
SKU: BBR_BDQQ-433710
View details
The Ford Coyote engine has proven itself as an awesome base for modifications since its debut in 2011, and COMP Cams now offers six different performance cam options that range from mild to wild for the newer direct Injection 2018+ Coyote engine. These brand new profiles, designed using data from GT350 race engines, are optimized for the 2018+ cylinder head geometry and flow, providing optimized power for any combination of modifications. The cams are designed to take advantage of the engine’s direct injection to not only make more horsepower, but to also maximize the fuel flow and power capability of the camshaft driven direct injection pump. In addition, these grinds are more stable at high RPM than the factory cam profiles while also producing more power across the entire RPM range.

Additional Attributes:

  • GTIN: 00036584402350
  • Camshaft Series: Thumpr NSR
  • Cam Type: Hydraulic Roller Finger Follower
  • Basic Operating RPM Range: 2,200-7,900
  • Intake Duration at .050 Inch Lift: 232
  • Exhaust Duration at .050 inch Lift: 242
  • Advertised Intake Duration: 280
  • Advertised Exhaust Duration: 313
  • Lobe Separation: 126
  • Intake Valve Lift: 0.55
  • Exhaust Valve Lift: 0.54
  • Valve Springs Required: No
  • Assembly Lubricant Included: No
  • Camshaft Material: Billet Steel
  • Engine Family: 2018+ Ford 5.0L Coyote
  • C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for On-Road Vehicles?: No
  • C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
  • C.A.R.B. Exemption Reason: N/A
  • C.A.R.B. E.O. Number: N/A
  • Stage: 2
  • ECU Tune Required?: Yes
  • Individual Cam Pt #s included: 433-711-11E, 433-712-11LI, 433-713-11RE, 433-714-11RI

Extened Information:

  • Emissions : Legal US
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 25.65 x 6.5 x 6.3 inches
