$261.00 off

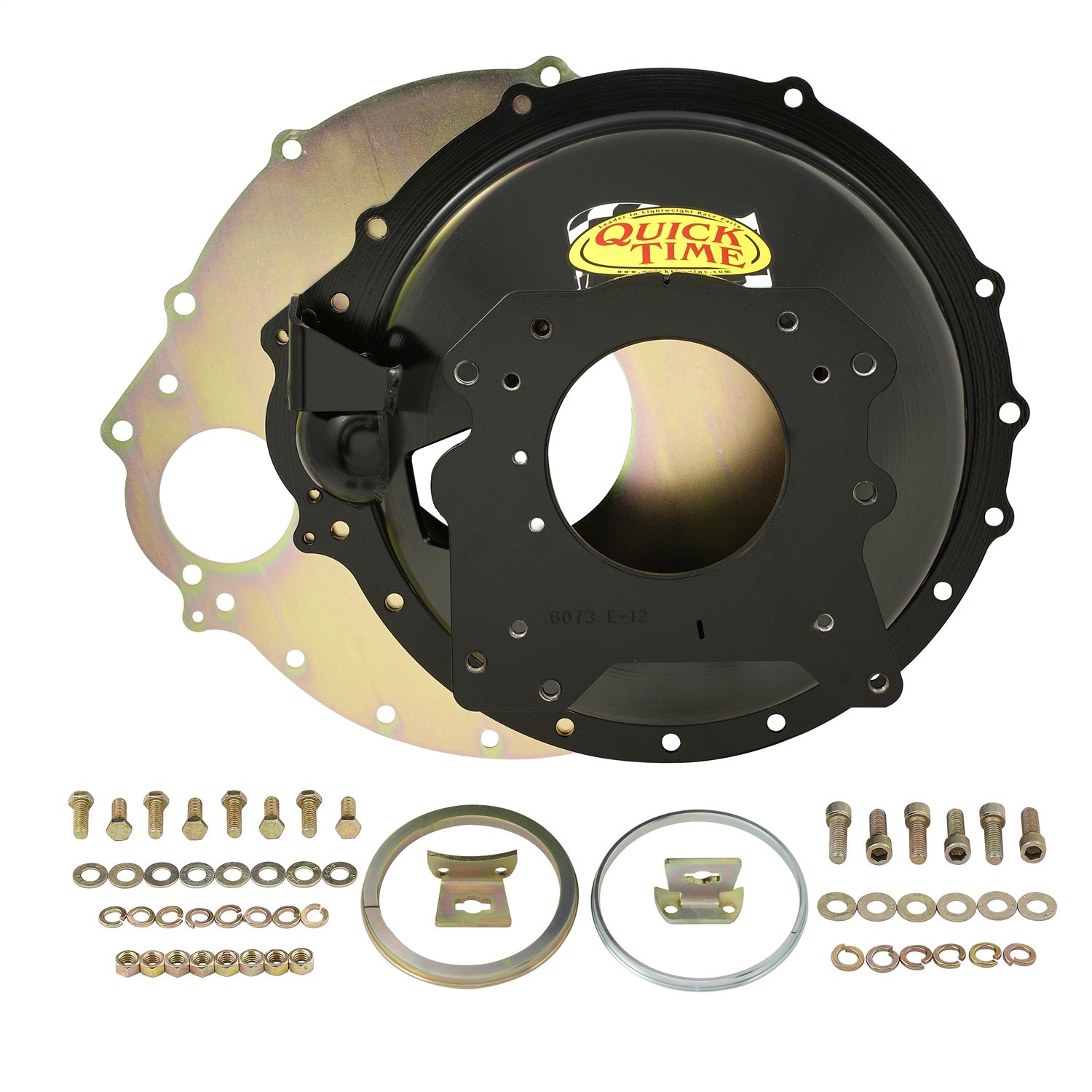

This bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit Mopar big block 383, 400, 426, 440 engines with 3/4 speed transmissions. 7.4 in deep will clear 130 tooth flywheel with 11 in clutch. Weighs 22 pounds. S.F.I. 6.1 certified. Fork bracket, block plate and Grade 8 hardware included. Made in America. Other applications available.
- Patent On 16 Points Of Bellhousing Design And Process
- Big Block Mopar 383 400 426 440 CID
- 3/4 Speed Mopar Transmission
- Fits Up To A 130 Tooth Flywheel And 11 in. Clutch
- Bellhousing Depth 7.400 in.
- Weight 22 lbs.
Additional Attributes:
- GTIN: 00084041029374
- Clutch Operation: Hydraulic
- Color: Black
- Engine: Mopar 383
- Engine Plate: RM-6073-C
- Finish: Semi-Gloss
- Flywheel Tooth Quantity: 130
- Item Height: 7.405 in.
- Material: Steel
- SFI Certification: 6.1
- Transmission Bore Diameter: 4.807 in. or 5.125 in. or 4.355 in.
- Transmission Model: Mopar 3-4 Speed A833
- Transmission Type: Manual
- WARNING CA Proposition 65: No
Extened Information:
- Emissions : Emission verification to be determined in ACES, vehicle application data.
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 18.8000 x 18.7000 x 8.5000 inches
