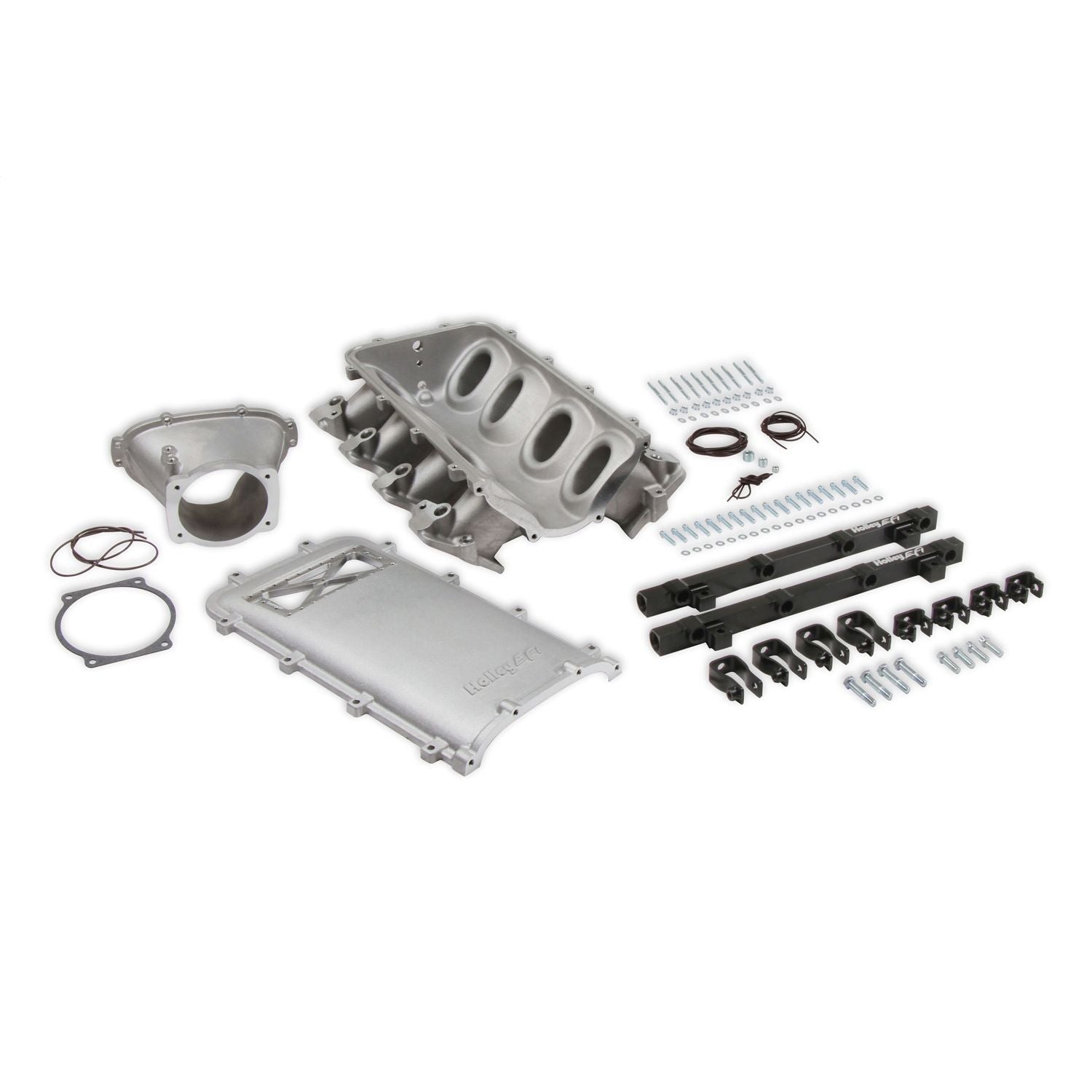

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. Plenum top is machined for a standard "large" 6-1/8" x 3-1/8" burst panel. SFI approved burst panels, burst panel frame sets, and gaskets may be purchased from various manufacturers such as Allstar Performance or Specialty Fasteners. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The 300-623 Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
- For Forced Induction Engines With Peak Power At 7000-8000 Rpm
- Plenum Top Is Machined For A Standard Large Burst Panel
- Modular Design Allows Customization For User Configurations
- Facilitates Custom Inlet Duct And Throttle Body Placement
- Low Height To Fit Under A Stock Or Mildly Modified Hood
- Front Entry Plenum Flange Allows Special Throttle Body Adapters
- High Volume Fuel Rails And Mounting Hardware Included
Additional Attributes:
- GTIN: 00090127080009
- Cylinder Head Type: LS1/LS2/LS6
- Engine Make/Size: Gen. III LS1/LS2/LS6
- RPM Range: 7000-8000
- Usage: Racing
- WARNING CA Proposition 65: No
Extened Information:
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 20.5000 x 15.4000 x 15.4000 inches
