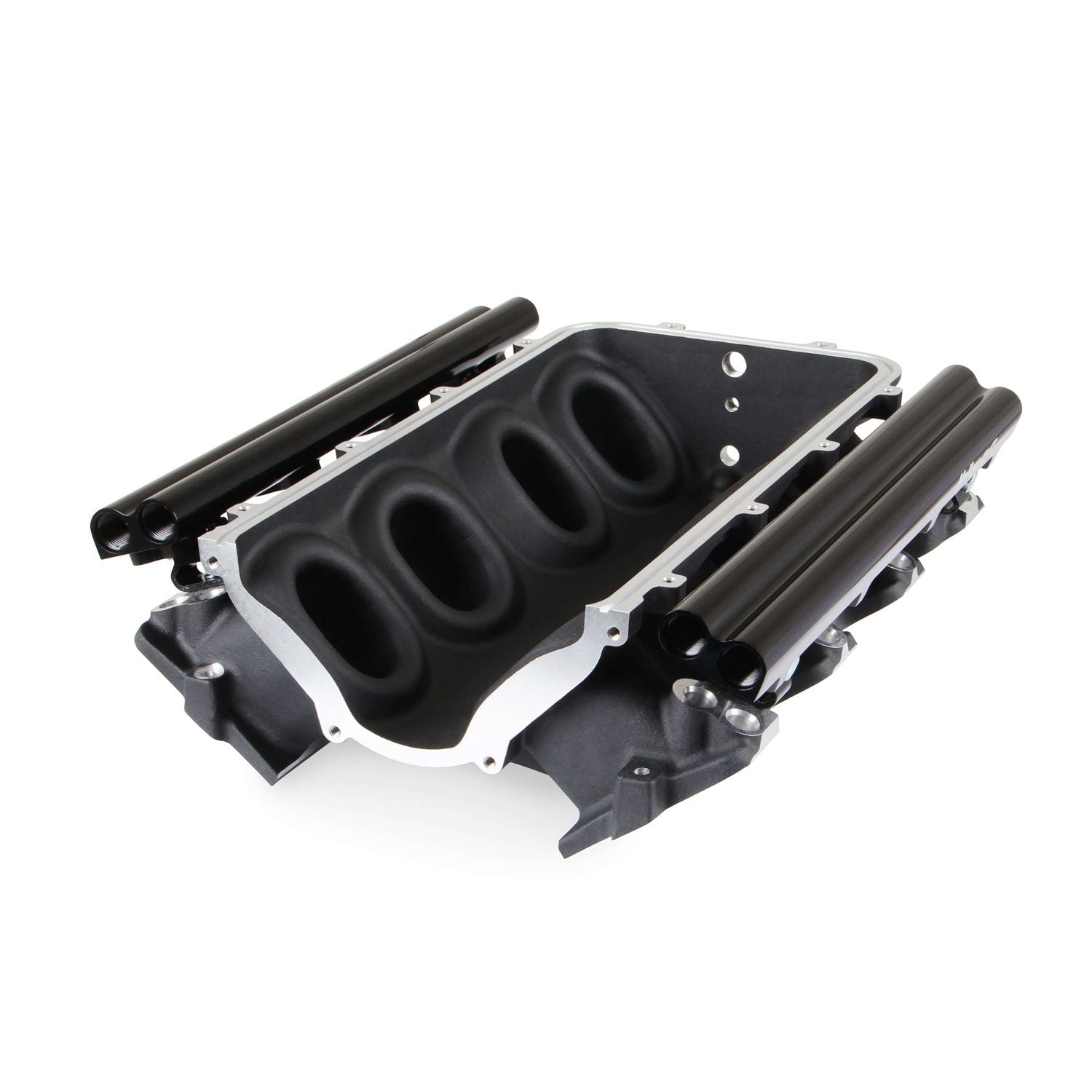

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. The 300-603(satin) & 300-603BK(black) front-feed, base-lower intake manifold provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. Offering this base intake manifold with fuels rails separately allows you to select your components individually as you build your induction system. Complete front-feed manifold kits are also available with dual fuel injectors, see P/N's 300-625 & 300-625BK. The front-feed, short runner, low-profile base intake manifold was conceived to package with high-boost turbocharged or supercharged induction systems with a short overall height not possible with other existing intake manifolds. The Holley Lo-Ram complete intake manifold kits and throttle body adapters available as a machined casting 300-606 & 300-606BK are configured for a 105mm throttle body, see Holley P/N 112-581 or similar models. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
- Provides Best Performance For Forced Induction
- Dual-injector Separate-passage High-Volume Fuel Rails
- Modular LS1 Lo-Ram Design Allows Customization
- Allows Installation In Most Applications Often Under Stock Hoods
- Available With Both As-Cast Satin And Black Power-Coat Finishes
Additional Attributes:
- GTIN: 00090127079393
- Cylinder Head Type: LS1/LS2/LS6
- Engine Make/Size: Gen. III LS1/LS2/LS6
- Position: Lower
- RPM Range: 7000-8000
- Usage: Racing
- WARNING CA Proposition 65: No
Extened Information:
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 19.7000 x 15.0000 x 7.3000 inches
