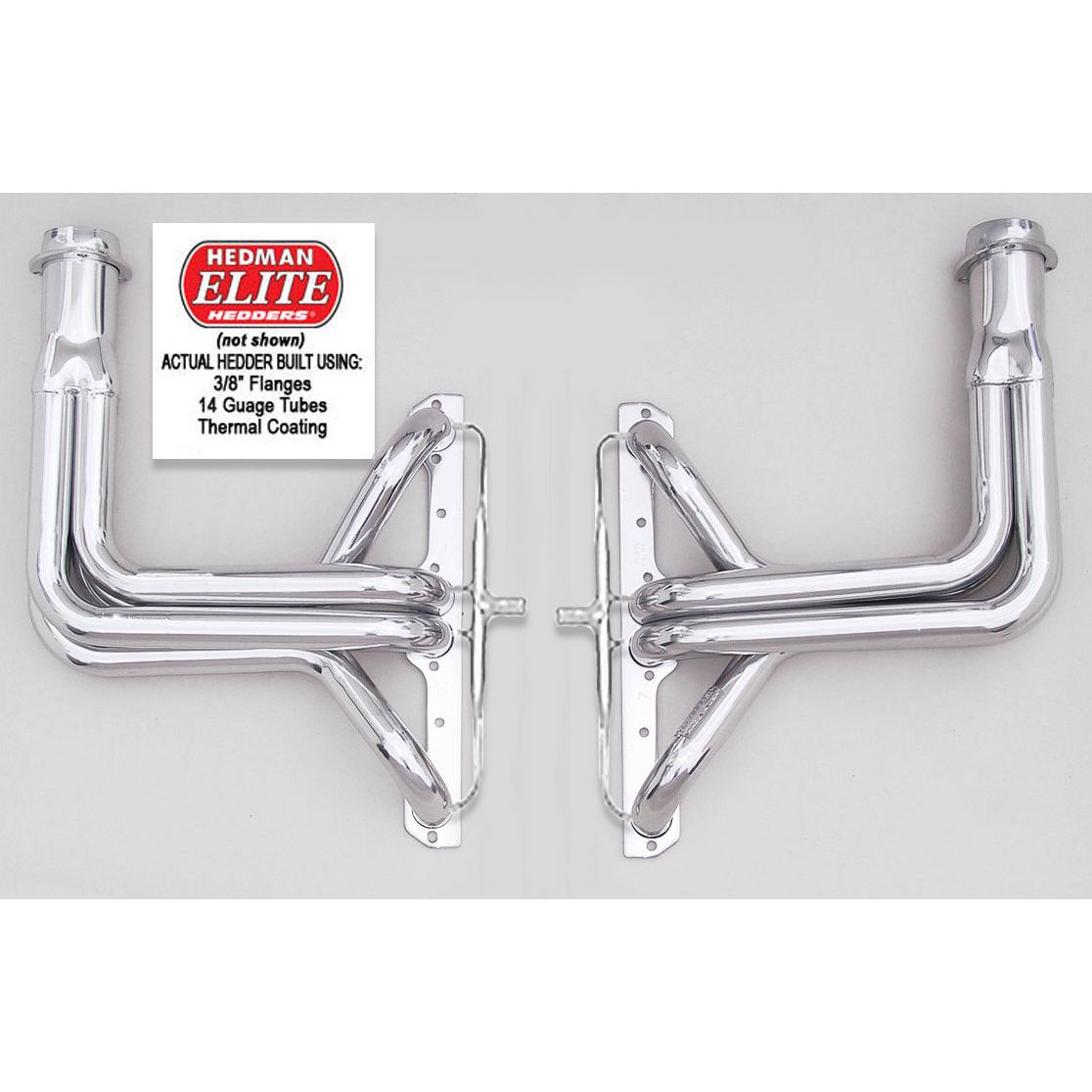

HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

• Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
• Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Additional Attributes:

• GTIN: 00732611613088
• Y-Pipe Included: No
• with EGR: Yes
• with A.I.R. System: No
• Package Contents: Set of Headers, mounting hardware and gaskets
• Installation Hardware Included: Yes
• Replacement Gasket: 27520
• Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
• Quantity: Sold as a pair.
• Motor Mounts Included: No
• Crossover Pipe Included: No
• Catalytic Converter(s) Included: No
• Weld-Up: No
• Tuned: No
• Primary Tube Gauge: 14g
• Primary Tube Diameter (in): 1.625 in.
• Mounting Hardware Included: Yes
• Header Material: Mild Steel
• Header Finish: HTC Polished Silver Ceramic-Metallic
• Cylinder Head Port Shape: Oval
• Variations: 66301, 61308
• Tube Style: Long Tube
• Tube Size: 1-5/8 in.
• Tube Material Thickness: 14g
• Tube Length: Long Tubes
• Tube Diameter: 1-5/8 in.
• Tube Design: LONG TUBES
• Reducer Outlet Size: 2-1/2 in.
• Power Steering: Yes
• Material: Mild Steel
• Manual Transmission - Floor: Yes
• Manual Transmission - Column: No
• Key Feature: With A.I.R.
• Replacement Head Flange Gasket: 27520
• Flange Style: Standard
• Finish Type: MATTE SILVER Ceramic-metallic coated
• Finish: Matte Silver Ceramic-Metallic
• Exhaust System Dia: 2-1/2 in.
• Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
• Collector Style: Ball and Socket Style (Gasketless)
• Collector Size: 3 in.
• Automatic Transmission - Floor: Yes
• Automatic Transmission - Column: Yes
• Air Conditioning: Yes
• Reducers Included: Yes
• Header Style: Long Tube
• Gasket Or Seal Included: Yes
• Collector Attachment: 3 in.
• Flange Thickness: 0.375 in.
• Bolts/Studs Included: Yes
• Header Construction: ELITE Heavy-Duty
• E.O. #: Yes
• Notes: 63-82 Corvette 283-400
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware

Extened Information:

• Emissions : Legal US
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 29.000 x 16.500 x 8.250 inches

PDF:

61308
